Enterprise 220
Lay-in metal panel in exposed T bar grid
Enterprise 220 offers a durable and modularised exposed grid solution which can suit any building module. The metal ceiling panels are designed to lay-in an aluminium 2-way T bar grid system. The solution provides installation ease, created by the snap-in grid which ensures panels and grid are installed in modularised straight lines. All panels are supported on all four sides, with the panels simply lifting out for maintenance and access.
This system is ideal for commercial offices, retail, healthcare and education.
Product Specification
Exposed Grid
Up to 1.0 NRC
Group 1
Recyclable
25 year warranty
Grid
24mm x 38mm aluminium T bar grid, exposed 2-way
Size
Bespoke modules on request
Material
Steel
Aluminium
Pattern
Plain
Perforated
Mesh
Finishes
Polyester powder-coated (PPC)
Timber effect
Bespoke finishes on request
Acoustics
Acoustic fleece, pad or board.
Performance is dependent on pattern open area and infill.
Absorption: up to 1.0 NRC
Attenuation: up to 37dB
Environment
Global GreenTag GreenRate Level A
Low VOC
ISO 14001 and ISO 9001
Recyclable and designed for disassembly
Product stewardship program
Technical
Fire Test: NCC Group 1
Seismic: project specific
Services: integration supported
Warranty: 25 years

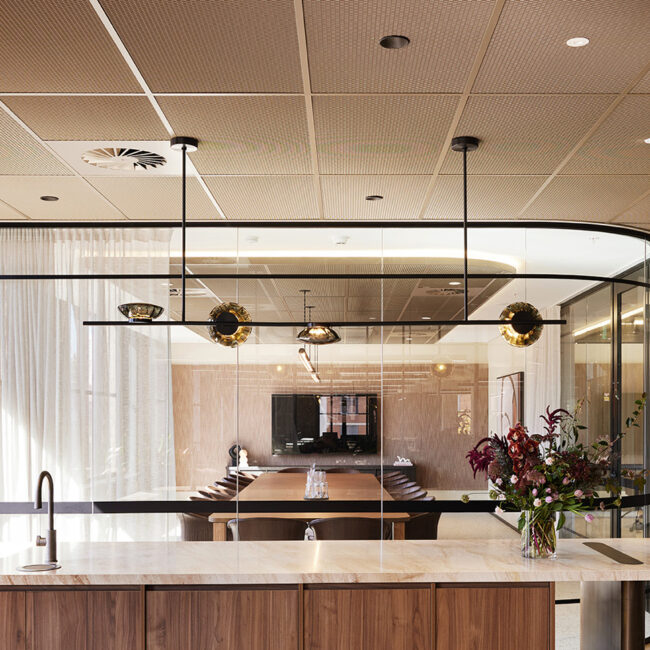

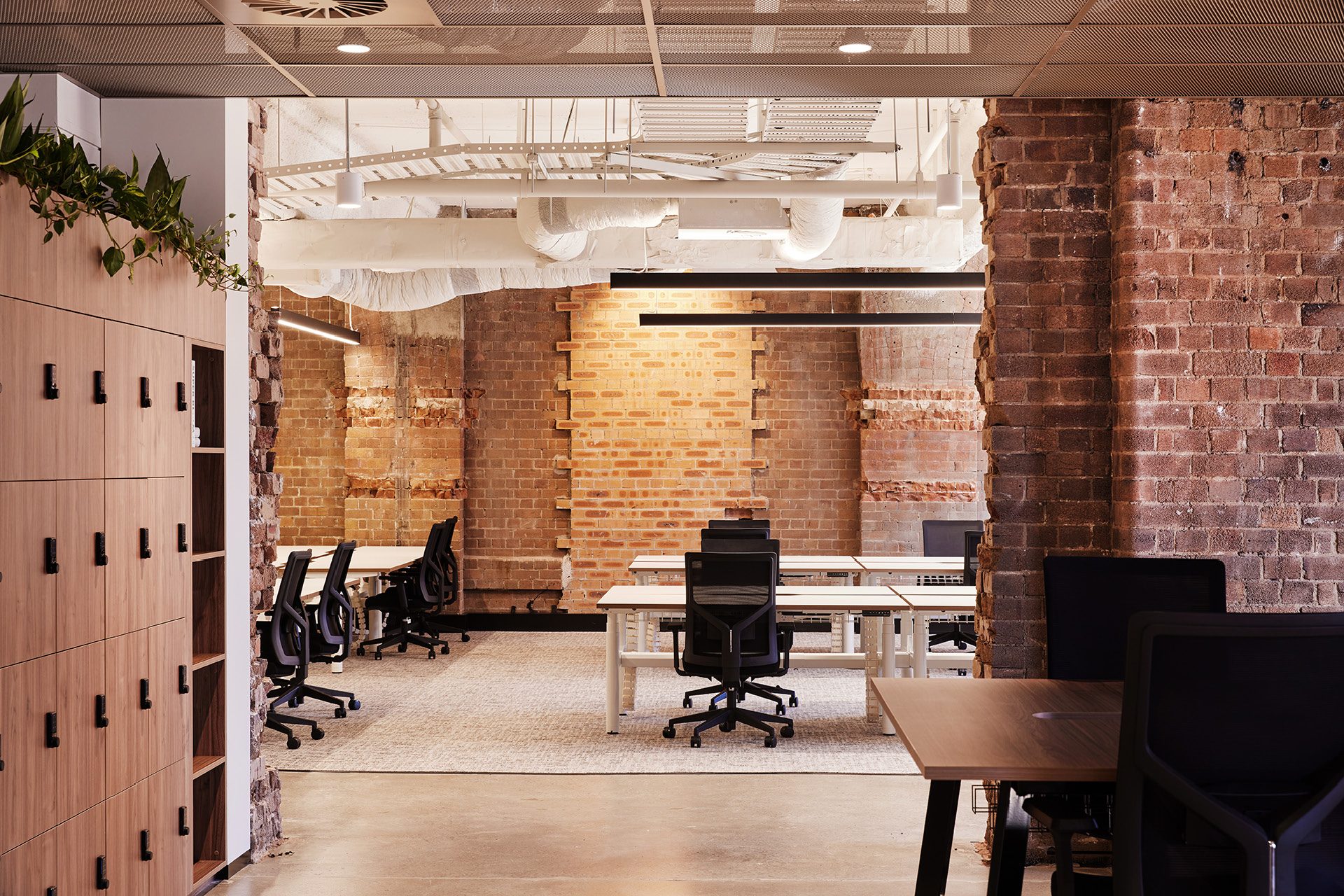

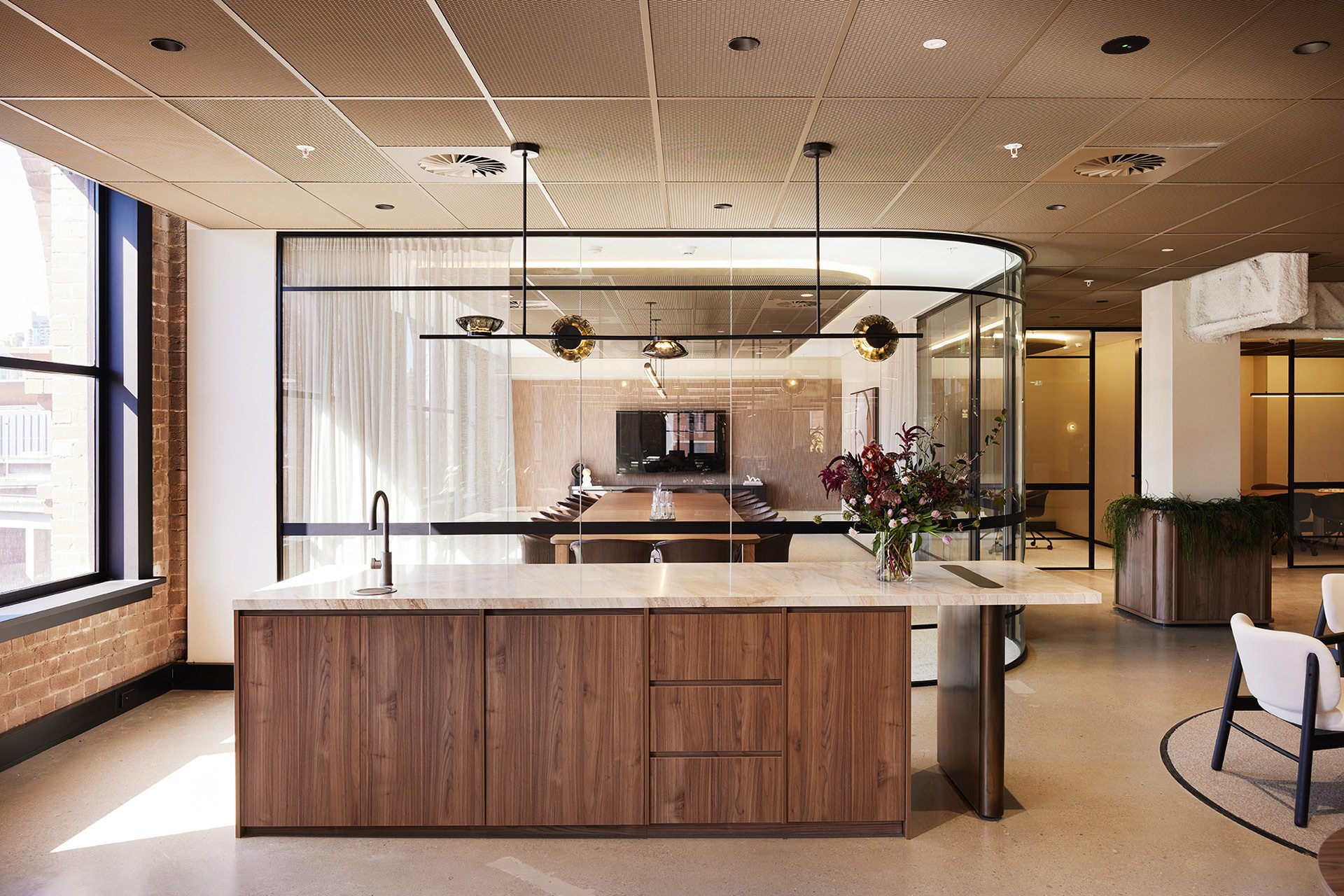

Gallery
